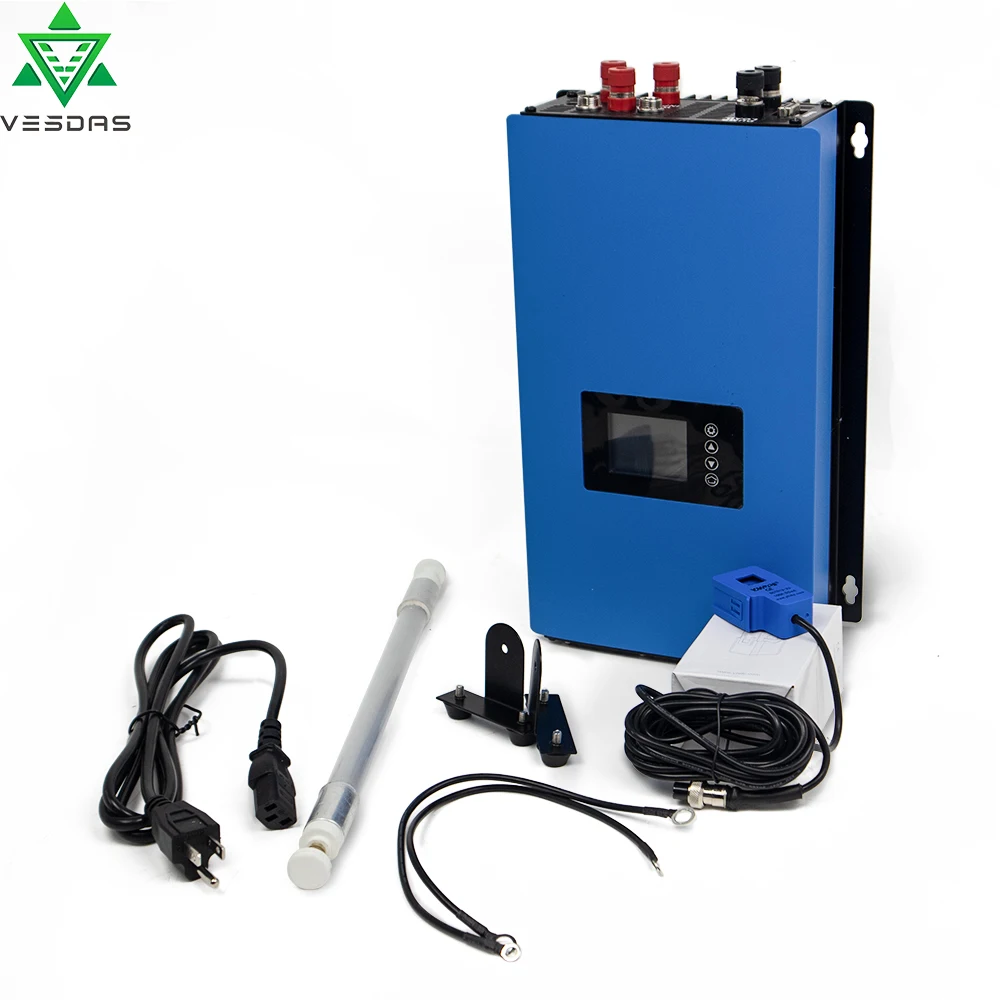

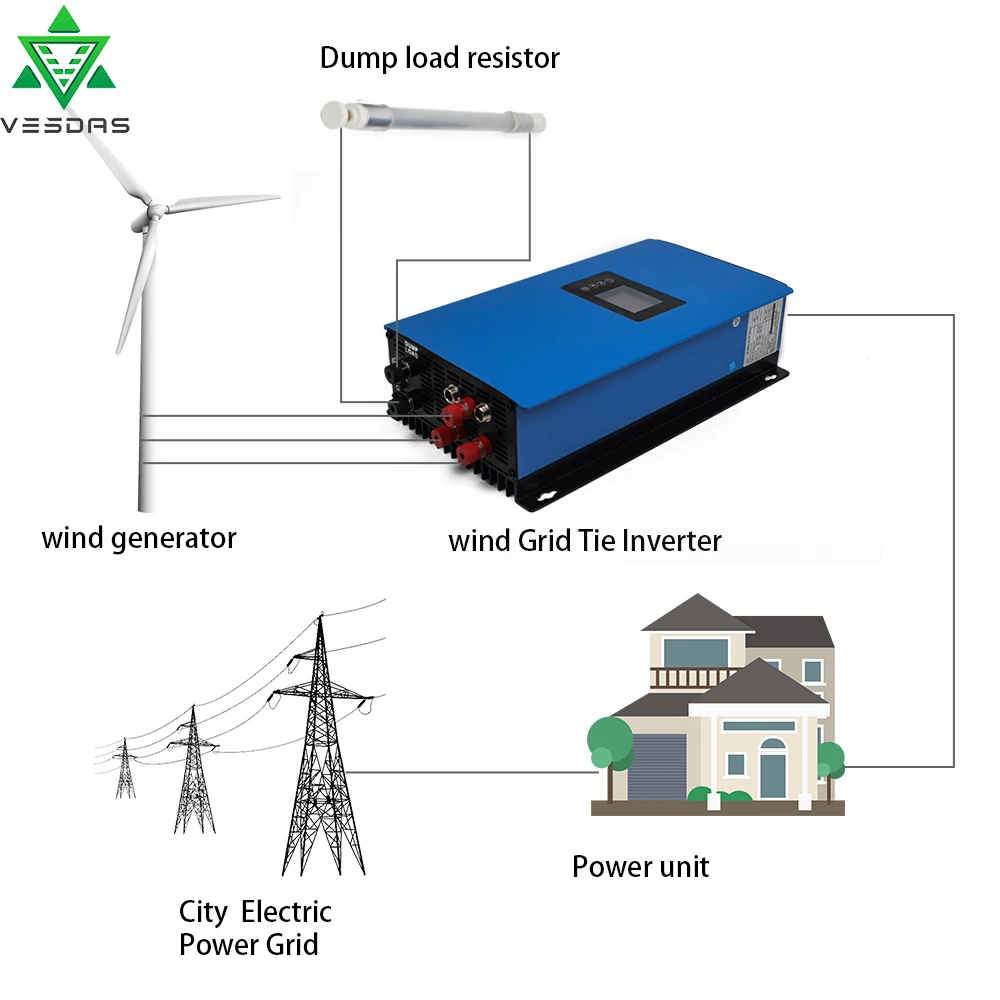

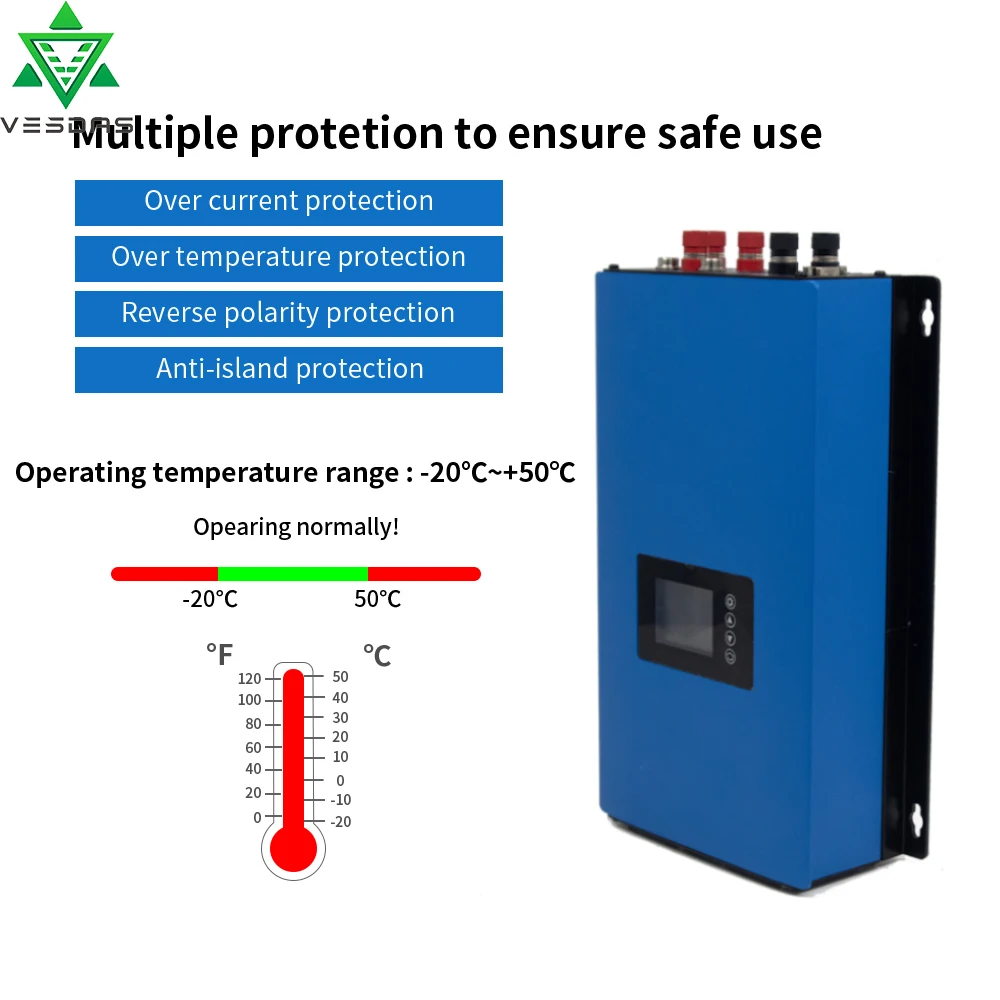

Vesdas 1000W MPPT Grid Tie Wind Power Inverter with Limiter Sensor Dump Load for AC 48v Wind Turbine LCD Dispaly Wifi Optional 1000W Grid Tie Inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load. Smart Micro inverter is synchronized and in-phase with the utility grid. If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid. 1.Creative MPPT tech makes efficiency higher than 99%. Reaction more sensitive and MPPT locking faster； 2.Parallel modular components design (stacking use) is convenient for systems setting, flexible combination and system scalability； 3.All-round protection functions:overcharge protection, over discharge protection, overload protection, electronic short circuit protection and reverse connection protection； 4.Anti-circle island protection. Rated Wind Power 1000W 1000W 2000W 2000W Rated wind Voltage 24VAC 48VAC 24VAC 48VAC DC input voltage 22V-60VDC 45V-90VDC 22V-60VDC 45V-90VDC (Rectifier AC-DC) MPPT Voltage 25V-60VDC 50V-90VDC 25V-60VDC 50V-90VDC AC output Auto: 110V(95V-140V);230V(185V-265V) Frequency Auto: 50Hz(47.5-51.5Hz);60V(59.3-60.5Hz) Power Factor >0.95 Output Pure Sine Wave MPPT Effeciency 99% Protection 1. Over Current Protection 2. Over Temperature Protection 3.Reverse Polarity Protection 4.Anti-Island Protection 5.integrate with internal limiter and external limiter function which can prevent excess power from going to the public grid LCD display 1.utility grid AC voltage, waveform, frequency 2. every day power and power generation curve, total power 3.shows real time power, input voltage,inside temperature,date and time 4.Set the clock and date Color blue(stock), Gold and Silver(custom-made) Accessories 1. dump load resistor 2. Limiter(sensor) 3.Wifi(optional) 4. Plug(EU or USA standard) N.W/G.W 4.3KGS/6KGS 4.3KGS/6KGS 5.4KGS/7.5KGS 5.4KGS/7.5KGS Color blue(stock), Gold and Silver(custom-made) Product Size 322x196x88mm 322x196x88mm 434x196x88mm 434x196x88mm Packing Size 450x320x180mm 450x320x180mm 450x320x180mm 450x320x180mm Inverter LCDDisplay : Installing Grid Tie Power System involves several keysteps: 1.Considering the total capacity of the grid tie power system that you need. 2.Choosing applicable wind turbine for Grid TieInverter. 3.Selecting accessory for installation of the Grid Tie Power System. 4.Selecting correct model of Grid TieInverter. 5.Installing wind turbine to suitable place. 6.Installing Grid Tie Inverter to suitableplace. 7.Connecting Grid Tie Power System with cables andconnectors. 8.Grounding the system. Grid Tie Power System to Three Phases Utility Grid Moreover, with a group of adept and experienced R&D staff, we are appreciated to provide top quality and excellent performance solar and wind inverter and related products for you. And we also can offer personalized services, tailor-made sevices for you. Welcom to keep in touch with your any questions about our solar and wind products.
