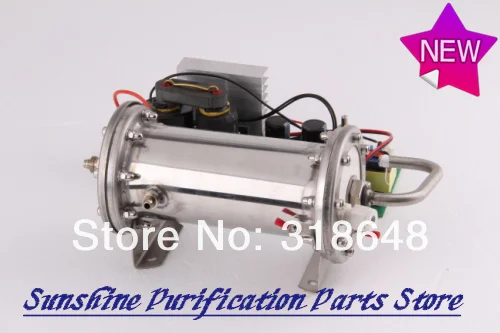

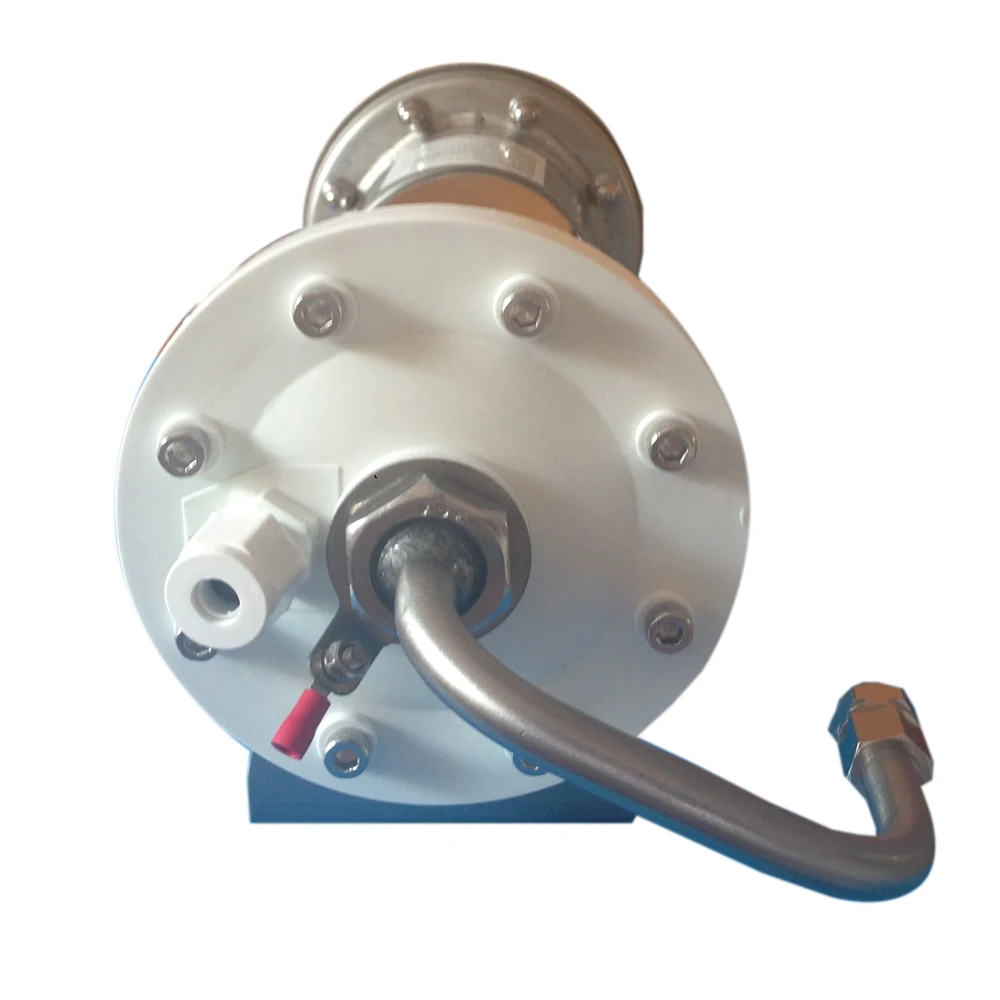

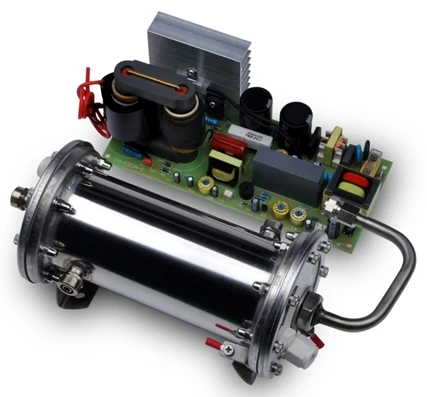

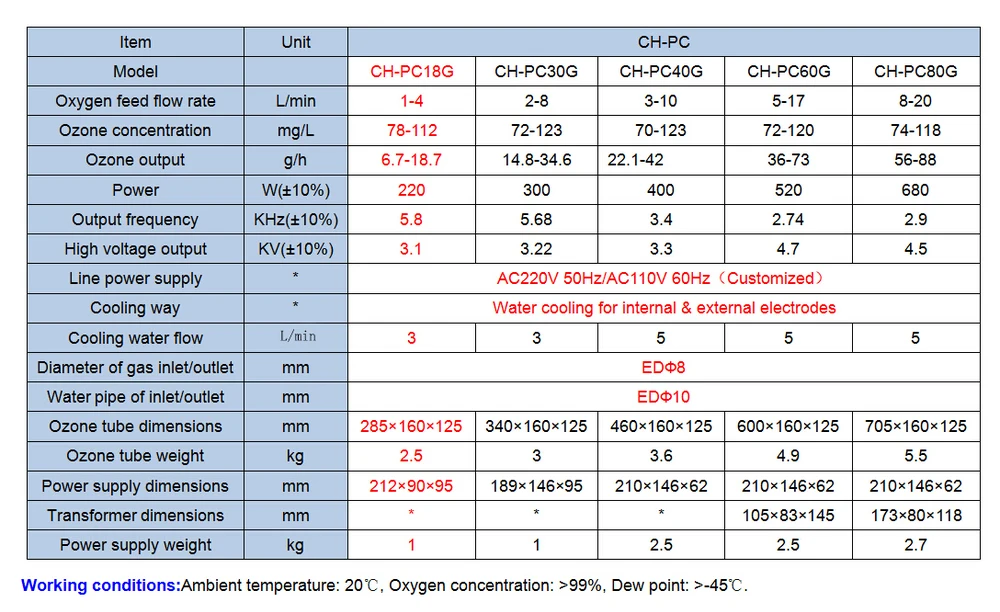

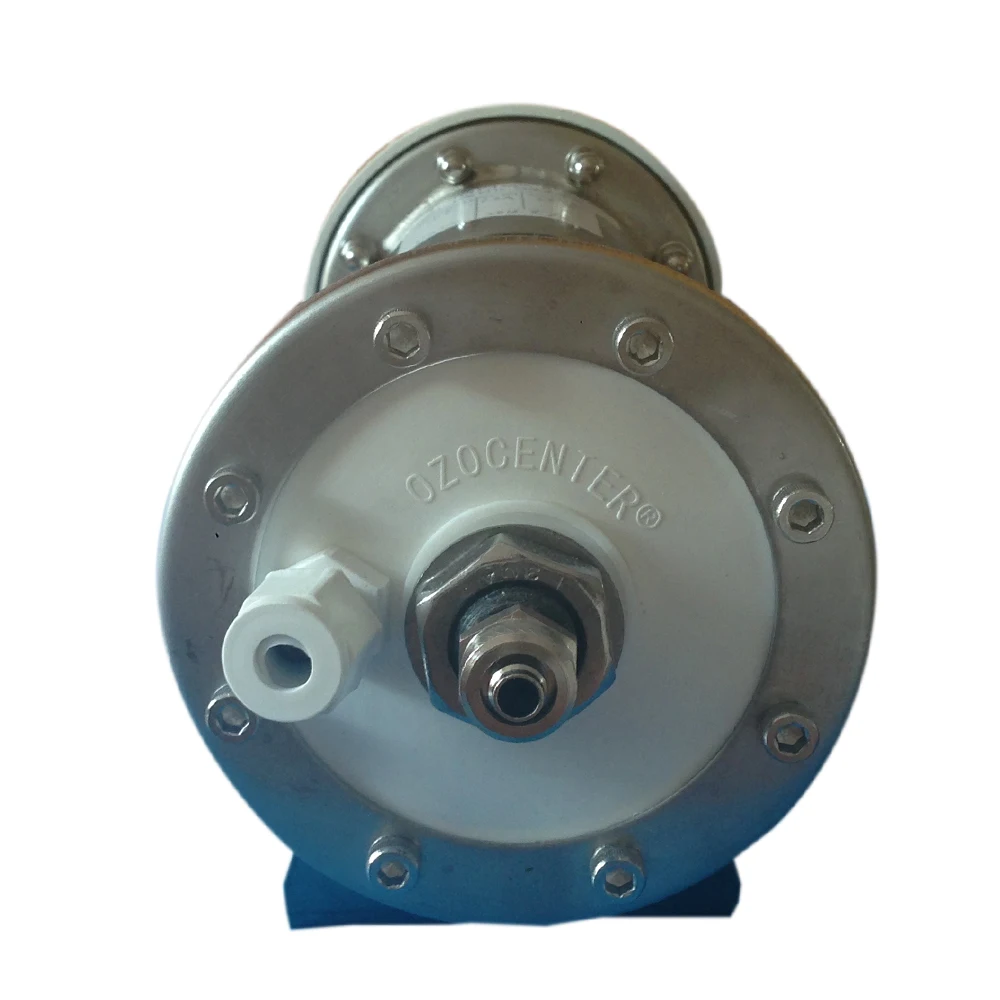

18GRH Enamel Tube Ozone Generator For Garden Watering to Kill Insects and Decompose Agricultural Chemicals + Free Shipping Specification: (below are the data for all of our double water cooling enamel tube ozone geneators, the red marked one is the product we describe here) Features: 1. Enamel Electrodes: 1) Use enamel coating as internal electrode, stainless steel as external electrode, capacity of coronaresistance and machinery anti-force capacity are stronger than glass, ceramic material. 2) Uniformityair gap between enamel coating internal electrode and stainless steel external electrode. 3) itproduces high concentration ozone output. 4) It uses insulation materials for connections toprevent creepage. 2. Cooling way: Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, to ensure highconcentrationof theozoneoutput. 3. Adjustable ozone output range: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control. Installation: How to connect high voltage cables: How to connect cooling water tube and oxygen/ozone tube: For Oxygen input/ Ozone output tube connection, use PTFE (Telfon) tube 8*6mm. For fourwater cooling connections, usePU tube 10*6.5mm. More Photos: AfterSalesService: Weareresponsibleforshippingdamages,andanyproductnotworkingifinstalledproperly.wecancompensateitwithpaymentbackorsendyounewone/ones.Buttheprerequisiteisthatyouraiseuptheproblemwithin7daysafterconsignment. Packaging: five-layercarton, make sure it is safe. Gross Weight: 5.5KG. Dimension: 35*25*25cm Attention: First of all.Please never touch the ozone generator (both power pack and the tube) in any way when it is working. There are high voltage, which is quite dangerous. when install it, please pay attention to the below 5 key points. 1. Vertically installation to make sure there is surficient amount of water from the bottom to the top to better cool down the tube. the cooling water temeperature should be beween "-8 to +8" degree compared with the working environment temperature. otherwise, there would be condensate. 2. The feeding sources must be pure oxygen or dry and clean ambient air. if not, it will breakdown the inner enamel tube soon. 3. There must be 5cm distance beween high voltages themselves, and 5cm distance beween high votlage cable and power cable to avoid EMI. 4. Install a venturi with built-in anti-flow device, to prevent any water go back into the enemal tube, to avoid damges. 5. The casing must be insulating materials, such as plastic. All in all, please read the manual carefully before installation, if meet any problems, please contact us timely for help. Never install it at your own mind, to avoid mistakes.
